Low Magnification Zoom Tube
1 inch camera compatible 0.275x - 0.55
2/3 inch camera compatible 0.55X-3.6X Zoom tube
1/2 inch camera compatible 0.37X-2.23X Zoom tube
Low Magnification Zoom Tube
Low Magnification Zoom Tube

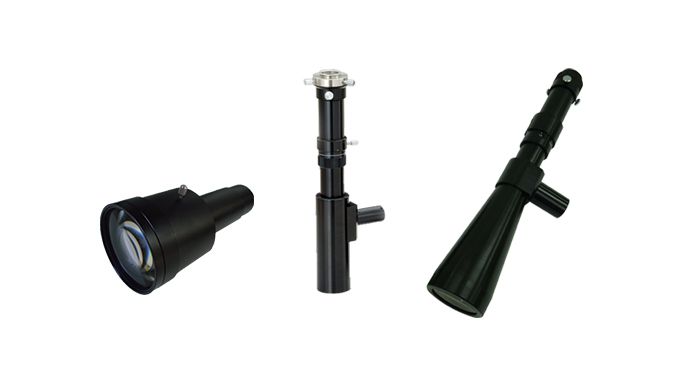

Compact zoom tube with magnification 0.55X-3.6X and 0.37X-2.23X.
The option of discrete zoom values, (in the zoom range) achieved by click detent, provided for MSZ-03722LWD-DET lens.
FXZ-2855 is telecentric zoom lens for 1 inch camera.
Low distortion, and possible to capture high resolution image in full area of FOV.
MS-05536Z-D is for 2/3 inch or smaller camera, and MSZ-03722LWD-DET is for 1/2 inch or smaller camera.
Ideal to capture uniform lighting image in full area of FOV.
| Model | Magnification | Working Distance | N.A. | ||
|---|---|---|---|---|---|
|
|
3.6x
|
263.5
|
0.034
|
|
|
|
|
0.55x
|
263.5
|
0.012
|
|
|
|
|
2.23x
|
195
|
0.043
|
|
|
|
|
0.37x
|
195
|
0.04
|
|
|
|
|
0.275x
|
150
|
0.0245
|
|
|
|
|
0.55x
|
150
|
0.0414
|
|
