SVL
High-resolution telecentric lenses for Large Sensors and Line Scan Cameras.
More information available upon request.
SVL
SVL
These lens are ideal for capturing the images of glass substrate, such as the patterns on a mirror. Choose from a variety of camera mount options.
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|

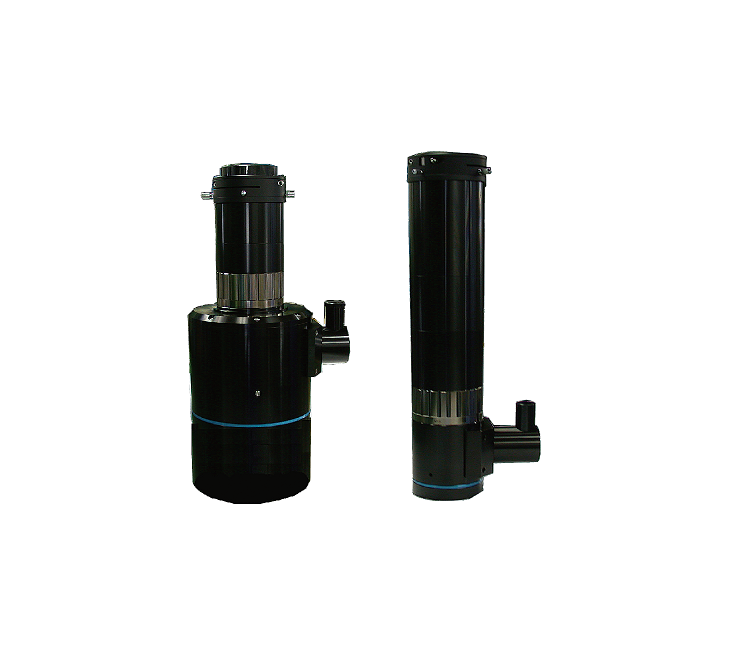

Coaxial Illumination Port Version
|
2x
|
0.124
|
8
|
110
|
|
|
|
|
Coaxial Illumination Port Version
|
1x
|
0.087
|
5.7
|
135
|
|
|
|
|
Coaxial Illumination Port Version
|
0.7x
|
0.062
|
5.6
|
150
|
|
|
|
|
Coaxial Illumination Port Version
|
0.5x
|
0.045
|
5.5
|
160
|
|
|
|
|
Coaxial Illumination Port Version
|
0.35x
|
0.022
|
8
|
300
|
|
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|
Straight Type
|
0.5x
|
0.045
|
5.5
|
160
|
|
|
|
|
Straight Type
|
0.7x
|
0.062
|
5.6
|
150
|
|
|
|
|
Straight Type
|
1x
|
0.087
|
5.7
|
135
|
|
|
|
|
Straight Type
|
2x
|
0.124
|
8
|
110
|
|
