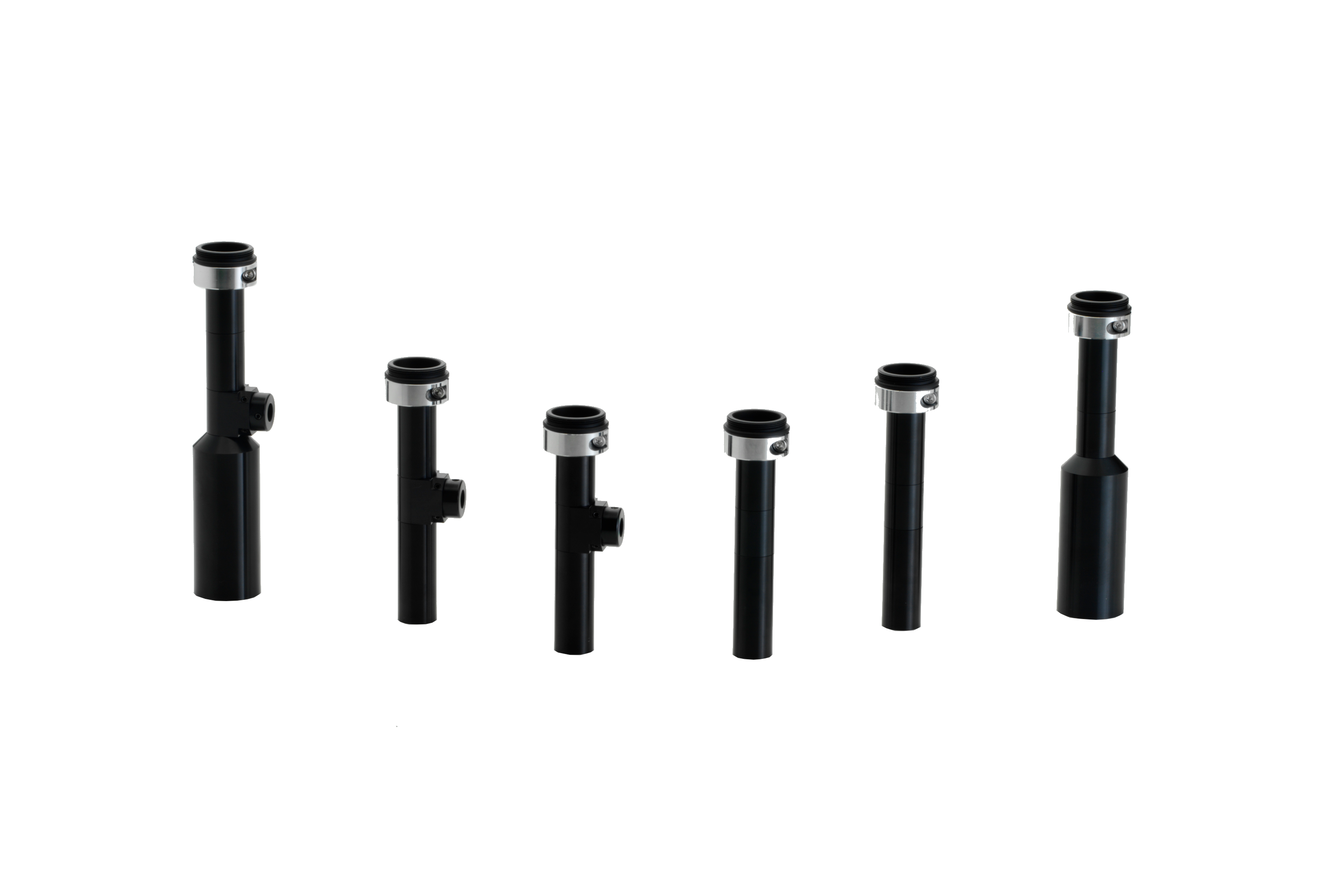

FVL 65
Compact telecentric lenses with 65mm working distances for φ 17 camera mount.
More information available upon request.
FVL 65
FVL 65
High resolution telecentric bonder lens, with low distortion that is suitable for image processing systems.
The lens use a new C - Mount adapter that allows total adjustment of camera orientation with a variety of illumination port styles and magnifications.
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|
Coaxial Illumination Port Version
|
5x
|
0.08
|
30.2
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
4x
|
0.08
|
26.2
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
3x
|
0.07
|
22.2
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
2x
|
0.06
|
16.3
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
1x
|
0.04
|
11.5
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
0.8x
|
0.04
|
10.1
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
0.5x
|
0.046
|
5.4
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
8x
|
0.081
|
48.2
|
70
|
|
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|
Straight Type
|
5x
|
0.08
|
30.2
|
65
|
|
|
|
|
Straight Type
|
4x
|
0.08
|
26.2
|
65
|
|
|
|
|
Straight Type
|
3x
|
0.07
|
22.2
|
65
|
|
|
|
|
Straight Type
|
2x
|
0.06
|
16.3
|
65
|
|
|
|
|
Straight Type
|
1x
|
0.04
|
11.5
|
65
|
|
|
|
|
Straight Type
|
0.8x
|
0.04
|
10.1
|
65
|
|
|
|
|
Straight Type
|
0.5x
|
0.046
|
5.4
|
65
|
|
