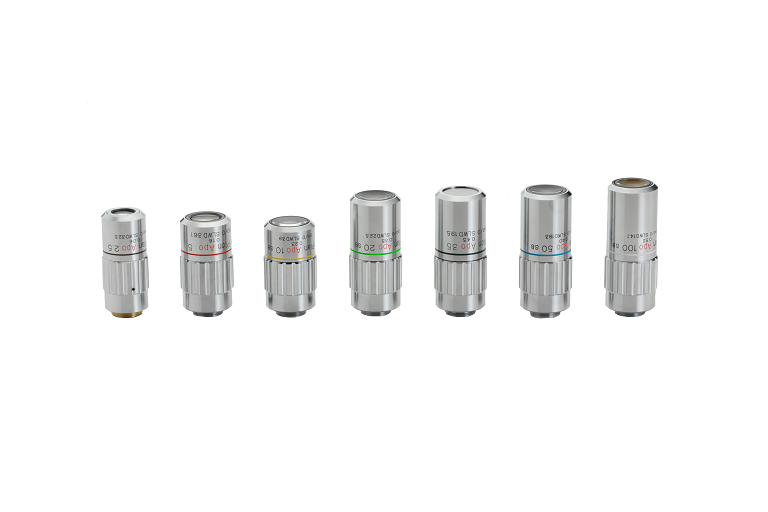

M Plan APO

High-quality objective lens with apochromatic designs that provide excellent contrast and resolution performance.

Full specs are available for download on the datasheets.

M Plan Apo

M Plan Apo

Long working distance objective lens for visible applications. They are compatible with the PS-888 series microscope and MS-200-TWL video tube microscope.



RMS Thread Available Contact us for more information.

Model Magnification Working Distance N.A. RP (μm) DOF (μm) Eyepiece FOV (mm) 2/3” Format FOV (mm)
M.PlanAPO100XSBS
100x
14.1
0.52
0.6
1
0.22
0.09 x 0.07
M.PlanAPO50XSBS
50x
18.3
0.40
0.8
1.7
0.44
0.18 x 0.13
M.PlanAPO20XS
20x
20.0
0.42
0.8
1.7
1.1
0.44 x 0.33
M.PlanAPO10XS
10x
38.9
0.23
1.5
5.2
2.2
0.88 x 0.66
M.PlanAPO5XSBS
5x
36.1
0.16
2.1
10.7
4.4
1.8 x 1.3
M.PlanAPO2.5XHR
2.5x
33
0.08
4.2
42.9
8.8
3.5 x 2.6
