Superscope
Under Seiwa Optical and Correct Tokyol, superscopes were designed and manufactured various models for semiconductors, LCD assembly and more.
More information available upon request.
Superscope
Superscope

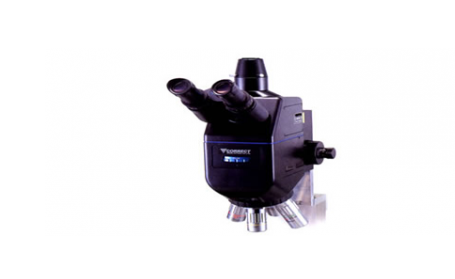

Standard Configuration with C-mount Camera port that is designed for probe station for semiconductors and for LCD assembly
Customizable design is made to order. Please specify desired operation wavelength at time of order.
| Model | Optical Path | Load Capacity | Stroke | Weight | ||
|---|---|---|---|---|---|---|
|
|
0:100/100:0 Switch path
|
45kgs (99.1lbs)
|
±25mm
|
7.5kgs(16.50Lbs) w/manual focus block
|
|
| Model | Optical Path | Load Capacity | Stroke | Weight | ||
|---|---|---|---|---|---|---|
|
|
T:R=70:30 Simultaneous Observation
|
45kgs (99.1lbs)
|
±25mm
|
6.8Kgs(14.99Lbs) w/manual focus block
|
|
| Model | Optical Path | Load Capacity | Stroke | Weight | ||
|---|---|---|---|---|---|---|
|
|
T:R=70:30 Simultaneous Observation
|
45kgs
|
50mm
|
8.1 kgs
|
|
|
|
|
0:100/100:0 Switch path
|
45kgs
|
50mm
|
8.1 kgs
|
|
| Model | Load Capacity | Stroke | ||
|---|---|---|---|---|
|
|
45 kgs
|
50mm
|
|
