STV-16-MPIR-1.1inch
SWIR Lenses
Introducing High resolution and low distortion SWIR lens

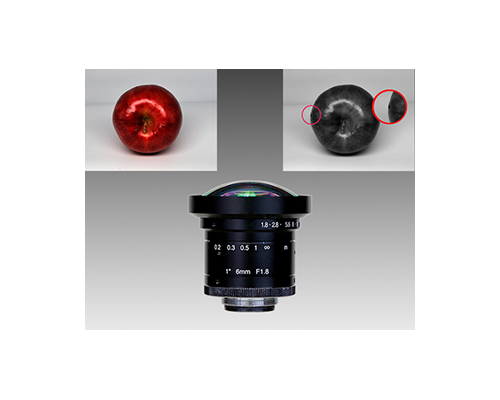

SWIR (Short Wave Infrared) band covers from 900nm – 1700nm having compatible wavelength with InGaAs camera. The combination of InGaAs camera and SWIR lens enables the user to inspect sub-surface images such as MEMS device, photovoltaics, and moisture of the apple detected is darker.
Applications:
- Sub-surface inspection (3D stack, wafers)
- Solar cell inspection
- Surveillance
- Quality control
- And More
Technical Specifications
Resolution:
3MP
Image Format:
1.1"
Focal Length:
16mm
F number:
F1.4
Relative Aperture:
F=1:1.4
Iris Range:
1.4 to 22
Angle Field of View:
45.5°(H) x 33.8°(V)

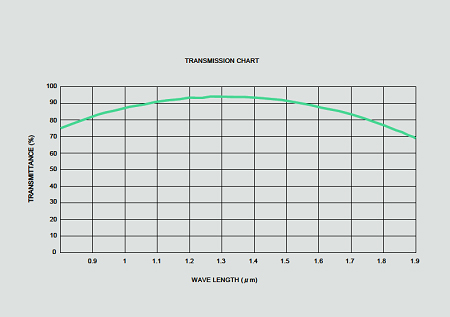

Objective wave length:
900 to 1,900nm
TV Distortion(＠Far):
-0.8%
M.O.D.:
0.3m(@900nm)
Back Focal Length:
16.4mm
Flange Back:
17.526mm
Operation:
Focus : Manual / Iris : Manual
Mount:
C
Filter Size:
M35.5 P=0.5

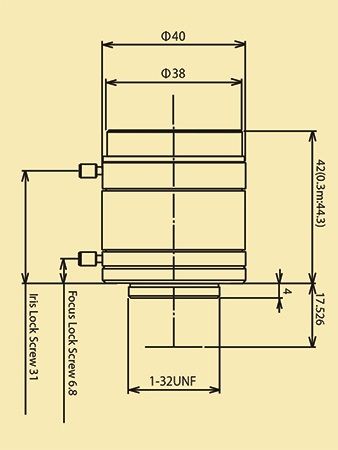

Dimensions:
Φ40 x 42mm
Weight:
120g
